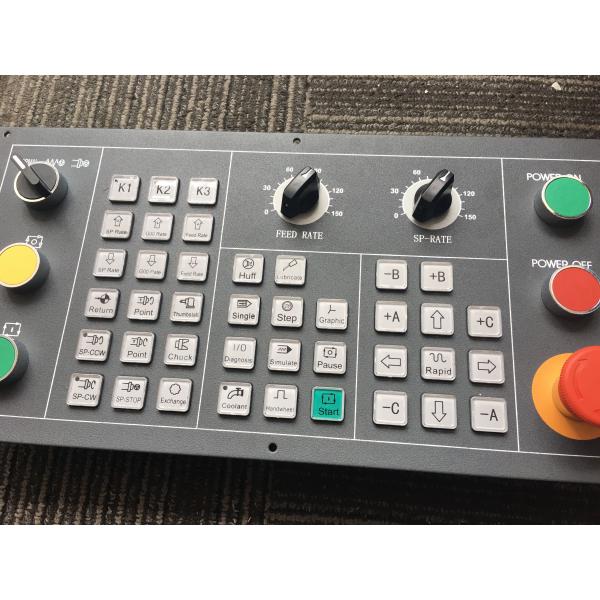

High Speed Digital Cnc Milling Controller With Operational Panel And Plc
Feature:
SZGH-CNC1000MDc-4 is high-performance type 4 axis CNC milling controller developed by Shenzhen Guanhong Automation CO.,LTD (short name:SZGH ), Which can control five feeding axes,&support incremental & absolutely servo system. two anglog spindles,2ms interpolation in high speed,1um precision.
Specification:
| Axis No: | 3 axis with X &Z C |
| Application: | CNC milling machine and drilling machine |
| Programming: | International standard G code and macro |
| Updated function: | ATC with linear&umbrella tool magazine |
| Customized function : | OEM display screen with clients' company name and logo |
| Stronger function: | Online programming |
| Warranty time: | 2 years |
| maintenance: | lifetime maintenance, quality assurance |
1) 800x600 8.4 inchs real color LCD displayer
2) Support PLC and macro function
3) 128MB Memory , 64Mb user store room,
4) The max speed is 30m/min, feeding speed is 15m/min
5) Adapted servo spindle can realize spindle continous position,rigid tapping,rigid screw processing
6) High anti-jamming switch power(220VAC -> 24VDC)
7) Built-in many plc programs,which can be edited freely.
8) With USB interface,it supports file operation in flash disk,system configuration and software upgrade
9) Display in chinese or english,which can be selected by parameter.
10) Analog voltage output of 0~10V in two channels,support double spindles
11) 32 bits high performance, low power consumption industrial grade ARM microprocessor.
12) I/Os : 56*32, 40*24 I/Os can be edited freely
13) cutter offset : C
14) English menu, program and interface, full screen edition
Support ATC function!!(Linear&Umbrella Tool Magazine)!
Umbrella Tool Magazine
Linear Tool Magazine
Dimension
Application:
CNC milling machinery; CNC drilling machinery; CNC boring machinery; wood working machine; CNC Engraving machine
Company advantage:
Shenzhen Guanhong Automation CO.,LTD is one of the leading CNC & automatic company in China, specialized in designing projects, marketing, and oversea trading, having extensive experience in CNC package solution
SZGH Advantage:
Certified actual products - We have a zero-tolerance policy for asset recovery vendors.
Lowest package prices -Always offer lower price than other companies.
Professional technical engineer team- possible fastest response and support to client’ application demand.
Quality guarantee – Free, one-years warranty and life-long maintenance. Any quality problem, GuanHong promise to refund.
Fast, professional and reliable International delivery – flexible and low cost delivery solution for clients.
